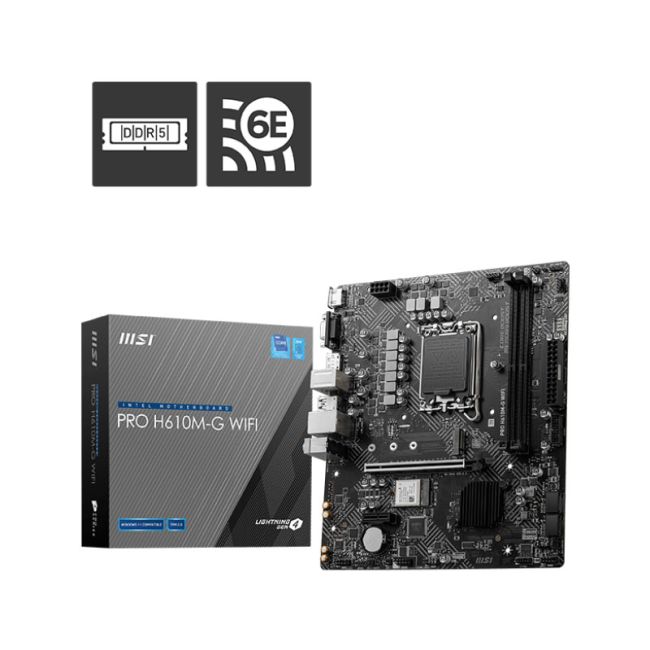

MSI PRO H610M-G WIFI DDR5 LGA1700 Motherboard

Rp 1.600.000

In stock

Pengiriman via Gosend ke sesama Batam

Socket LGA 1700 – Mendukung prosesor Intel® Core™ 12th & 13th Gen.
Chipset Intel H610 – Stabil untuk kebutuhan komputasi harian dan bisnis.
Dukungan DDR5 – Maksimal hingga 64GB, kecepatan hingga 4800+ MHz (OC).
Slot PCIe 4.0 – Bandwidth tinggi untuk VGA modern.
M.2 Gen4 – Mendukung SSD NVMe kecepatan tinggi.
Wi-Fi 6 & Bluetooth 5.2 – Koneksi nirkabel cepat dan stabil.
LAN 1Gbps – Jaringan kabel kecepatan tinggi.
Audio Boost – Kualitas suara jernih untuk hiburan dan komunikasi.
Port USB 3.2 Gen 1 & USB 2.0 – Konektivitas perangkat yang lengkap.
Desain mATX – Kompak dan kompatibel dengan banyak casing.
Garansi Resmi MSI Indonesia

Categories:

KOMPONEN PC

Details
More Information

PRO H610M-G WIFI DDR5

MSI PRO H610M-G WIFI DDR5 adalah motherboard mATX dengan socket LGA 1700 yang mendukung prosesor Intel® Core™ generasi ke-12 & 13. Dilengkapi dukungan memori DDR5, slot PCIe 4.0, M.2 Gen4, Wi-Fi 6, Bluetooth 5.2, dan LAN 1Gbps, motherboard ini menawarkan performa stabil, konektivitas cepat, dan desain kompak untuk PC modern.

Specifications

Chipset	Intel® H610 Chipset
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Wireless LAN & Bluetooth®	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
USB	4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Intel® I219V 1Gbps LAN controller
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports
LED FEATURE	EZ Debug LED
BACK PANEL PORTS	1x HDMI™ 1x VGA 1x DisplayPort 1x Keyboard/Mouse 2x USB 3.2 Gen 1 5Gbps Type-A 1x LAN port Audio connector 4x USB 2.0
Form Factor	mATX 211mmx243.84mm

More Information
Socket	INTEL LGA1700
Price	Rp 1.600.000
