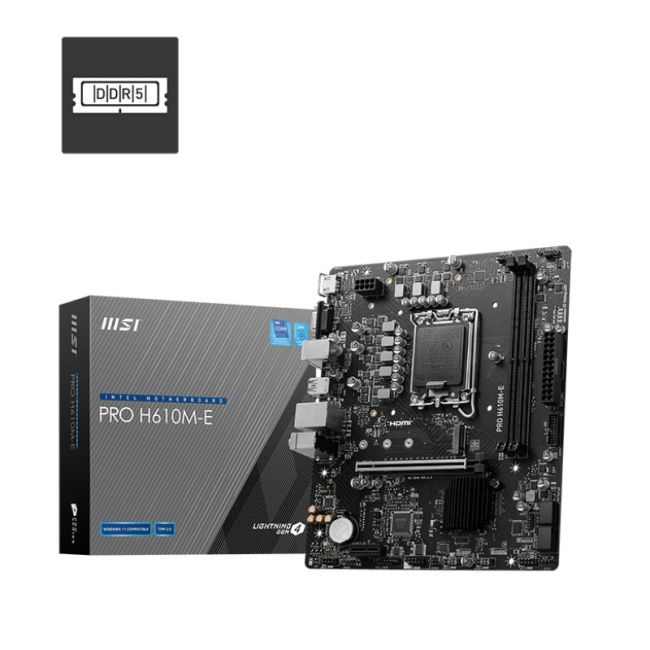

MSI PRO H610M-E DDR5 LGA1700 Motherboard
Rp 1.250.000
In stock
- Pengiriman via Gosend ke sesama Batam
- Mendukung Intel Gen 12, 13, 14 (LGA 1700)
- 2 slot DDR5 hingga 96 GB, kecepatan sampai 5600 MHz
- Slot PCIe 4.0 x16 dengan Steel Armor
- 1 slot M.2 PCIe 3.0 x4 + 4 port SATA III
- HDMI & VGA untuk grafis terintegrasi
- Audio Realtek ALC897 7.1 channel & LAN Gigabit
- USB 3.2 Gen1 & USB 2.0
- EZ Debug LED
- Form factor Micro-ATX
- Garansi Resmi MSI Indonesia
Categories:
PRO H610M-E
MSI PRO H610M-E DDR5 adalah motherboard Micro-ATX dengan soket LGA 1700 yang mendukung prosesor Intel generasi ke-12, 13, dan 14. Dilengkapi 2 slot DDR5 hingga 96GB, PCIe 4.0 x16, slot M.2, port SATA III, HDMI & VGA, audio 7.1 channel, LAN Gigabit, serta fitur EZ Debug LED untuk kemudahan instalasi. Cocok untuk PC kerja, kreator, dan gaming ringan dengan performa stabil.
Specifications
| Chipset | INTEL H610 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | EZ Debug LED |
| BACK PANEL PORTS | 1x HDMI™ 1x VGA 1x Keyboard / Mouse 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x LAN port Audio Connectors 4x USB 2.0 |
| Form Factor | mATX 200mmx236.16mm |
| Socket | INTEL LGA1700 |
|---|---|
| Price | Rp 1.250.000 |
