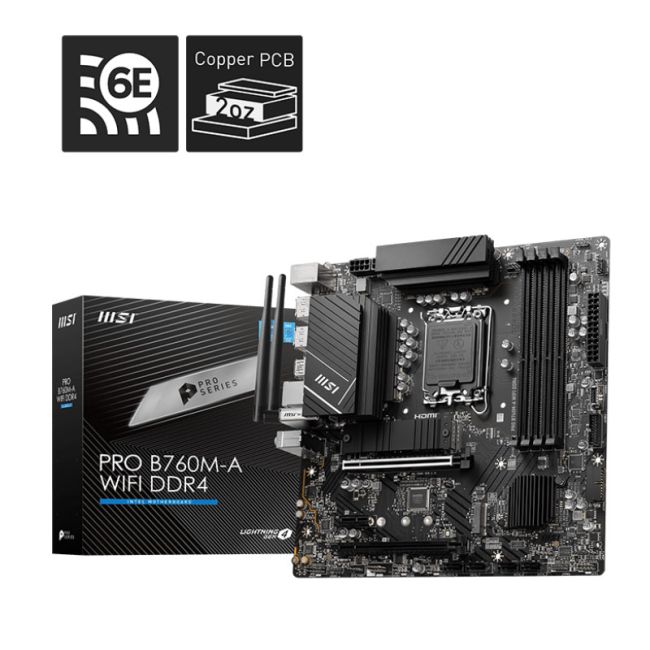

MSI PRO B760M-A WIFI DDR4 LGA1700 Motherboard

Rp 1.950.000

In stock

Pengiriman via Gosend ke sesama Batam

Soket & Chipset: LGA 1700, mendukung prosesor Intel generasi ke-12, ke-13, dan ke-14 (Core, Pentium Gold, Celeron)
Chipset Intel B760 – Performa stabil untuk kerja, multitasking, dan gaming.
Dukungan DDR4 – Hingga 128GB, kecepatan hingga 5333+ MHz (OC).
Slot PCIe 4.0 – Bandwidth tinggi untuk VGA modern.
Dual M.2 Gen4 – Mendukung SSD NVMe kecepatan tinggi.
Wi-Fi 6E & Bluetooth 5.3 – Koneksi nirkabel cepat dan stabil.
LAN 2.5Gbps – Jaringan kabel super cepat.
Audio Boost – Kualitas suara jernih dan detail.
USB 3.2 Gen 2 & Gen 1 – Transfer data cepat dengan berbagai perangkat.
Desain mATX – Ringkas dan kompatibel dengan banyak casing.
Garansi Resmi MSI Indonesia

Categories:

KOMPONEN PC

Details
More Information

PRO B760M-A WIFI DDR4

MSI PRO B760M-A WIFI DDR4 adalah motherboard mATX dengan socket LGA 1700 yang mendukung prosesor Intel® Core™ Gen 12, 13, dan 14. Mengusung dukungan memori DDR4 hingga 128GB, slot PCIe 4.0, dual M.2 Gen4, Wi-Fi 6E, Bluetooth 5.3, dan LAN 2.5Gbps, motherboard ini menawarkan performa stabil, konektivitas cepat, dan desain ringkas untuk PC modern.

Specifications

Chipset	Intel® B760 Chipset
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics	2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED FEATURE	EZ Debug LED
BACK PANEL PORTS	1x Keyboard / Mouse 2x DisplayPort 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x 2.5G LAN Wi-Fi / Bluetooth Audio Connectors 2x USB 2.0 2x HDMI™ 2x USB 3.2 Gen 2 10Gbps (Type-A)
Form Factor	mATX 243.84mmx243.84mm

More Information
Socket	INTEL LGA1700
Price	Rp 1.950.000
