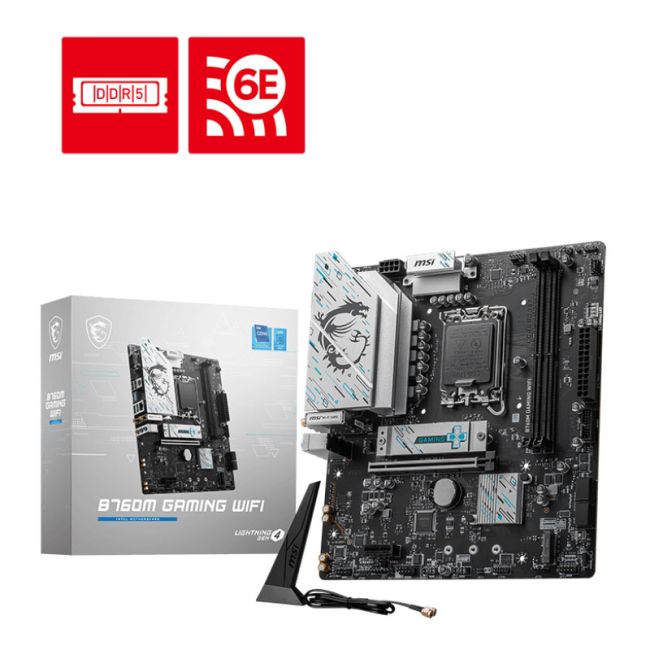

MSI B760M GAMING WIFI DDR5 LGA1700 Motherboard

Rp 2.200.000

In stock

Pengiriman via Gosend ke sesama Batam

Soket & Chipset: LGA 1700, mendukung prosesor Intel generasi ke-12, ke-13, dan ke-14 (Core, Pentium Gold, Celeron)
Chipset Intel B760 – Performa stabil untuk kerja, multitasking, dan gaming.
Dukungan DDR5 – Hingga 128GB, kecepatan hingga 7000+ MHz (OC).
Slot PCIe 4.0 – Bandwidth tinggi untuk VGA modern.
Dual M.2 Gen4 – Mendukung SSD NVMe kecepatan tinggi.
Wi-Fi 6E & Bluetooth 5.3 – Koneksi nirkabel cepat dan stabil.
LAN 2.5Gbps – Jaringan kabel super cepat.
Audio Boost – Kualitas suara jernih dan detail.
USB 3.2 Gen 2x2 & Gen 2 – Transfer data super cepat.
Desain mATX Gaming – Estetika modern dengan aksen gaming.
Garansi Resmi MSI Indonesia

Categories:

KOMPONEN PC

Details
More Information

B760M GAMING WIFI

MSI B760M GAMING WIFI DDR5 adalah motherboard mATX dengan socket LGA 1700 yang mendukung prosesor Intel® Core™ Gen 12, 13, dan 14. Dibekali dukungan memori DDR5 hingga 128GB, slot PCIe 4.0, dual M.2 Gen4, Wi-Fi 6E, Bluetooth 5.3, dan LAN 2.5Gbps, motherboard ini dirancang untuk performa gaming optimal dengan konektivitas cepat dan desain bergaya gaming modern.

Specifications

Chipset	Intel® B760 Chipset
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)
LAN	Realtek® RTL8125B 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LED FEATURE	EZ Debug LED
BACK PANEL PORTS	1x VGA Keyboard / Mouse 1x 2.5G LAN Wi-Fi / Bluetooth Audio Connectors 1x HDMI™ 1x DisplayPort 2x USB 2.0 4x USB 3.2 Gen 1 5Gbps (Type-A)
Form Factor	mATX 220mmx243.84mm

More Information
Socket	INTEL LGA1700
Price	Rp 2.200.000
