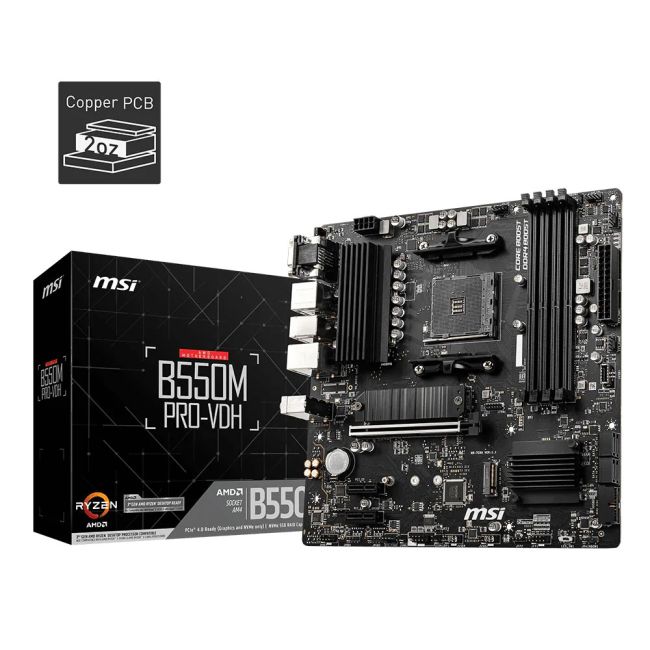

MSI B550M PRO-VDH AM4 Motherboard
Rp 1.400.000
In stock
- Pengiriman via Gosend ke sesama Batam
- Chipset AMD B550 – Mendukung prosesor AMD Ryzen™ seri 3000 & 5000 (socket AM4)
- Form Factor m-ATX – Cocok untuk casing compact dengan fitur lengkap
- Dual M.2 Slot – Salah satunya mendukung PCIe 4.0 untuk SSD super cepat
- DDR4 Memory Support – Hingga 128GB, kecepatan hingga 4400+ MHz (OC)
- Core Boost Technology – Stabilitas daya CPU lebih optimal untuk performa maksimal
- PCIe 4.0 Ready – Slot GPU lebih kencang untuk gaming & rendering
- LAN Gigabit + USB 3.2 Gen1 – Koneksi cepat untuk internet & perangkat eksternal
- Audio Boost – Kualitas suara lebih jernih untuk gaming & multimedia
- Extended Heatsink Design – Pendinginan VRM lebih maksimal
- EZ Debug LED – Memudahkan troubleshooting saat rakit PC
- Garansi Resmi MSI Indonesia 3 tahun
Categories:
B550M PRO-VDH
MSI B550M PRO-VDH AM4 Motherboard adalah motherboard m-ATX berbasis chipset AMD B550 yang dirancang untuk performa stabil dan efisien. Mendukung prosesor Ryzen™ seri terbaru, dilengkapi PCIe 4.0, dual M.2, serta dukungan RAM DDR4 berkecepatan tinggi. Dengan fitur pendinginan optimal dan konektivitas lengkap, motherboard ini cocok untuk kebutuhan gaming maupun produktivitas harian.
Specifications
| Chipset | AMD B550 Chipset |
| CPU | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Memory | 4x DDR4 memory slots, support up to 128GB 1Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory Please refer www.msi.com for more information on compatible memory. |
| Onboard Graphics |
1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1 |
| Slot |
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 |
| Audio | Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD Processor)Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor. |
| USB | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN | 1x Realtek® 8111HN Gigabit LAN controller |
| Wireless Communication module | - |
| Internal IO | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper |
| BACK PANEL PORTS | VGA USB 3.2 Gen 1 5Gbps Type-A Keyboard / Mouse LAN Flash BIOS button DisplayPort HDMI™ USB 2.0 USB 3.2 Gen 1 5Gbps Type-A HD Audio Connectors |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Socket | AMD AM4 |
|---|---|
| Price | Rp 1.400.000 |
