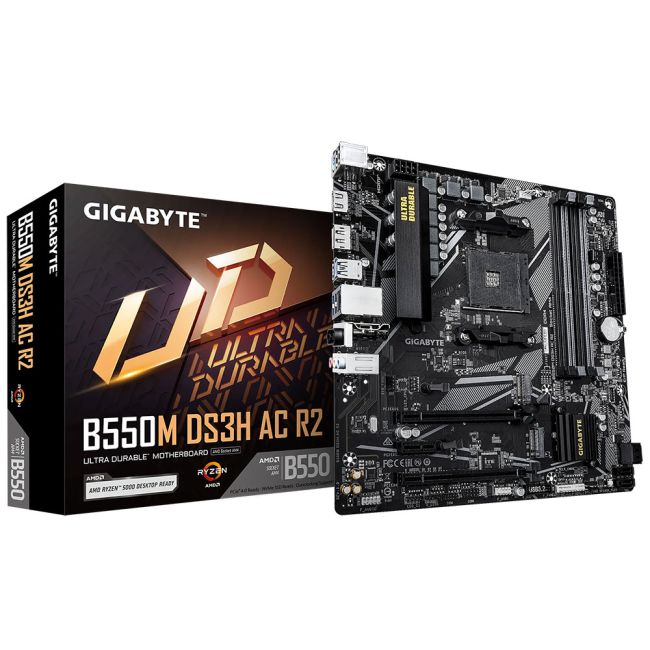

GIGABYTE B550M DS3H AC R2 AM4 Motherboard

Rp 1.550.000

In stock

Pengiriman via Gosend ke sesama Batam

AM4 Socket – Support Ryzen 3000–5000 Series
Chipset AMD B550, ukuran Micro ATX
4× DDR4 hingga 128GB, 4733MHz (OC)
Slot GPU: PCIe 4.0 x16, PCIe 3.0 x16 (x4), PCIe 3.0 x1
Storage: 2× M.2 NVMe/SATA, 4× SATA 6Gb/s, RAID 0/1/10
Display: HDMI 2.1 & DisplayPort 1.4, HDR support
Audio: Audio 7.1-Channel (Realtek ALC1220), Audio Noise Guard
Wi-Fi 5 + Bluetooth 5.0, Gigabit LAN
Smart Fan 6, Q-Flash Plus, RGB Fusion 2.0
Ultra Durable dengan Anti-Sulfur Resistors
Garansi Resmi Gigabyte Indonesia

Categories:

KOMPONEN PC

Details
More Information

B550M DS3H AC R2

GIGABYTE B550M DS3H AC R2 adalah motherboard Micro ATX berbasis chipset AMD B550 dengan soket AM4, mendukung prosesor Ryzen 3000 hingga 5000 Series. Dibekali 4 slot DDR4 hingga 128GB, PCIe 4.0 x16 untuk GPU, dua slot M.2 NVMe/SATA, dan 4 port SATA3 dengan dukungan RAID. Hadir dengan HDMI 2.1, DisplayPort 1.4, audio 7.1-channel, LAN Gigabit, Wi-Fi 5, Bluetooth 5.0, serta fitur Smart Fan 6 dan desain Ultra Durable untuk performa stabil dan tahan lama.

Specifications

Chipset	AMD B550
CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Slot	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi RTL8821CE - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
Internal IO	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
BACK PANEL PORTS	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

More Information
Socket	AMD AM4
Price	Rp 1.550.000
