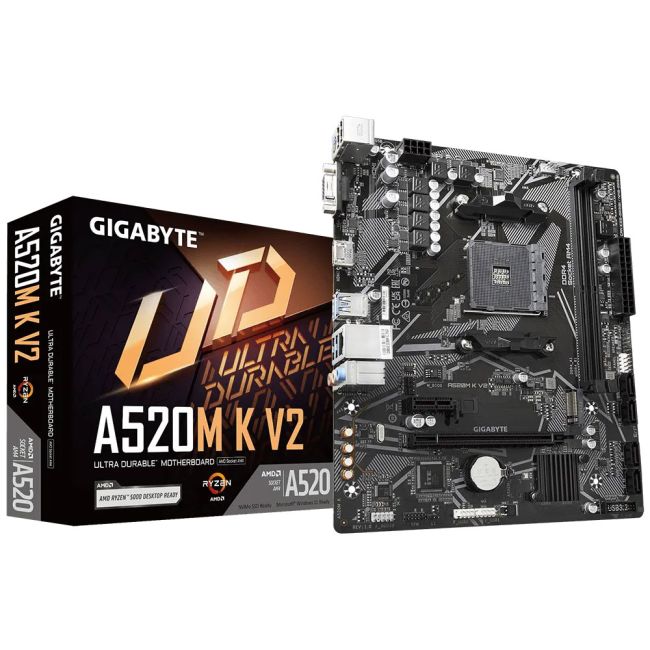

GIGABYTE A520M-K V2 AM4 Motherboard

Rp 850.000

In stock

Pengiriman via Gosend ke sesama Batam

AM4 Socket – Support Ryzen 3000–5000 Series
Chipset AMD A520, ukuran Micro ATX
DDR4 64GB, hingga 5100MHz (OC), ECC ready
Slot GPU: PCIe 3.0 x16 + PCIe 3.0 x1
Storage: 1× M.2 NVMe/SATA + 4× SATA3, RAID support
Display: HDMI 2.1, D-Sub, HDR
Audio: 7.1-Channel HD, Audio Noise Guard
LAN: Gigabit Ethernet
Cooling: Smart Fan 5, Hybrid Fan Header
Durability: Ultra Durable, Anti-Sulfur
Garansi Resmi MSI Indonesia

Categories:

KOMPONEN PC

Details
More Information

A520M K V2

GIGABYTE A520M-K V2 adalah motherboard Micro ATX berbasis chipset AMD A520 dengan soket AM4, mendukung prosesor Ryzen 3000 hingga 5000 Series. Dilengkapi 2 slot DDR4 hingga 64GB, slot PCIe 3.0 x16 untuk GPU, serta penyimpanan M.2 NVMe/SATA dan 4 port SATA3 dengan dukungan RAID. Hadir dengan konektivitas HDMI 2.1 & D-Sub, audio 7.1-channel, LAN Gigabit, serta fitur pendingin Smart Fan 5 dan desain Ultra Durable untuk performa stabil dan tahan lama.

Specifications

Chipset	AMD A520
CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Slot	CPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Storage	CPU:1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset:4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	CPU:4 x USB 3.2 Gen 1 ports on the back panel Chipset:2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Internal IO	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
BACK PANEL PORTS	1x HDMI™ 1x VGA 1x Keyboard / Mouse 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x LAN port Audio Connectors 4x USB 2.0
Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm

More Information
Socket	AMD AM4
Price	Rp 850.000
